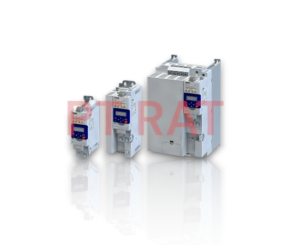

Distributor Lenze Inverter

The new i950 servo inverter that we have added to our automation system fits smoothly into our automation platform with which it is completely compatible.

The same architecture, the same engineering and use of the same application software dissolve the boundaries between drive-based and controller-based automation.The “FAST” application software toolbox becomes usable for all products.

With FAST, we make a lot of things easier for the customer as the FAST applications of the i950 can be put to use immediately and can be adapted to the respective machine task by means of parameterisation alone. If necessary, however, they can be adapted and extended very easily according to specific customer requirements.

In addition, the i950 servo inverter enhances the performance of the i700 servo inverter in our controller-based system in the range of 22 to 110 kW.

Your advantages

• One platform, flexibly scalable: The i950 is the completing element of a coherent Lenze automation platform for modular machine solutions, flexibly scalable from the smallest machine module with only one motion axis to complex multi-axis systems.
• FAST applications, usable immediately: The i950 comes with FAST “Inside” technology applications, which can be selected very easily by means of the EASY Starter and used immediately.
• Future-proof and ready for Industry 4.0: Due to open standards such as PLCopen, IEC61131-3, and CIA402, we make it possible for the OEM to repeatedly re-use already completed engineering work for different applications, today and in the future.
• Compact design: All versions of the i950 have a very compact design and, up to 15 kW, can be integrated into 250 mm-deep control cabinets.

9400 series servo inverters for controlled, dynamic motion.

Performance data:

• Single Drives: 0.50 to 321.84 Hp (0.37 to 240 kW), 1.5 to 460 A
• Multi Drives: 0.50 to 40 Hp (0.37 to 30 kW), 1.5 to 59 A

Particularly suitable for: processing of continuous material in the packaging industry, perforating paper webs in the printing industry, winding in the textile industry, and storage technology in the field of intralogistics.

Advantages:

• Connections: start/stop, analog inputs/outputs (2/2), freely programmable digital inputs/outputs (8/4)
• Resolver and universal multi-encoder input
• Communication: CANopen, DeviceNet, EtherCAT, Ethernet, EtherNet/IP, POWERLINK, PROFIBUS, PROFINET
• Supports synchronous and asynchronous motors
• Integrated brake management
• Scalable memory thanks to multiple memory modules
• Versatile and freely configurable technology functions, e.g. for table positioning, positioning controls, electronic gearboxes and cams
• Scalable safety functions

i700 series servo inverters for controlled, dynamic motion.

Performance data of supply modules:

• Line voltage: 3 AC 400/480 V, 0.5 to 60 Hp (0.37 to 45 kW), 1.1 to 88 A

Performance data of axis modules:

• Single axis: 1.0 to 20.0 Hp (0.75 to 15 kW), 2.5 to 32 A
• Multi axis: 1.0 to 10 Hp (0.75 to 7.5 kW), 2.5 to 16 A

Particularly suitable for: handling and packaging machines and robotic applications

Advantages:

• Connections: digital inputs/outputs (2/0)
• Resolver and encoder feedback
• Communication: EtherCAT
• Axis modules capable of multiple overloads for peak output currents between 5 and 64 A, double axes up to 32 A
• The servo inverter for Controller-based Automation in conjunction with the various types of  Controllers
• CIA 402 operating modes (position, velocity, torque-control, velocity-mode)
• STO safety-function
