Jual Inverter Micno ME3000

/ INVERTER, MICNO / Oleh

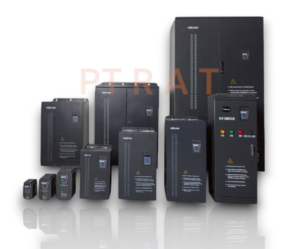

\"Inverter

Inverter Micno ME3000 Series Engineering

Kami Jual Inverter Micno ME3000 Series Engineering berkualitas Original dan dijamin keasliannya. Micno adalah merk dagang terkemuka yang telah dipakai hampir di semua pabrik yang ada di Indonesia. Kami siap memenuhi kebutuhan Inverter Micno untuk Anda dengan cepat dengan harga bersaing di seluruh Indonesia.

Description of Inverter Micno ME3000 Series Engineering

ME3000 is a high-performance engineering transmission product independently developed by Shenzhen MICNO Electric.

Combined with the needs of actual engineering applications, the ME3000 series has the characteristics of small size, strong function, and wide application range.

The ME3000 inverter integrates PG-free vector control, multi-stage V / f control, torque control, and soft start functions, and is widely used in fans, pumps and load control accuracy, torque response speed, and low-frequency torque output have high requirements Applications.

Specifications of Inverter Micno ME3000 Series Engineering

Item Technical Index Specification
Input Input voltage 1AC 220V±15%，3AC 220V±15%，3AC 380V±15%，3AC 660V±15%
Input frequency 47~63Hz
Output Output voltage 0～rated input voltage
Output frequency V/f control: 0~3000Hz Sensorless vector control: 0~300Hz
Operation command mode Keypad control Terminal control Serial communication control
Frequency setting mode Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes.
Overload capacity G model: 150% 60s, 180% 10s, 200% 3s P model: 120% 60s, 150% 10s, 180% 3s
Starting torque 0.5Hz/150% (SVC); 1Hz/150% (V/f)
Speed adjustment range 1:100 (SVC), 1:50 (V/f)
Carrier frequency 1.0-16.0kHz，automatically adjusted according to temperature and load characteristics
Frequency accuracy Digital setting: 0.01HzAnalog setting: maximum frequency * 0.05%
Torque boost Automatically torque boost; manually torque boost: 0.1%~30.0%
V/f curve Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
Acceleration/decele ration mode Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s~3600.0s
DC braking DC braking when starting and stopping DC braking frequency: 0.0Hz~maximum frequency, braking time: 0.0s~100.0s
Jog operation Jog operation frequency: 0.0Hz~maximum frequency Jog acceleration/deceleration time: 0.1s~3600.0s
Simple PLC & multi-step speed operation It can realize a maximum of 16 segments speed running via the built-in PLC or control terminal.
Built-in PID Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
Automatic voltage regulation Keep output voltage constant automatically when input voltage fluctuating
Control Function Common DC bus Common DC bus for several inverters, energy balanced automatically
Torque control Torque control without PG
Torque limit “Rooter” characteristics, limit the torque automatically and prevent frequent over-current tripping during the running process
Wobble frequency control Multiple triangular-wave frequency control, special for textile
Timing/length/counting control Timing/length/counting control function
Over-voltage & over-current stall control Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
Fault protection function Up to 30 fault protections including over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running status during failure & has fault automatic reset function
Input/output terminals Input terminals Programmable DI: 7 on-off inputs, 1 high-speed pulse input 2 programmable AI: AI1: 0～10V or 0/4～20mA A12: 0～10V or 0/4～20mA
Output terminals 1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output) 2 relay output 2 analog output: 0/4~20mA or 0~10V
Communication terminals Offer RS485 communication interface, support MODBUS-RTU communication protocol
Human machine interface LED display Display frequency setting, output frequency, output voltage, output current, etc.
Multifunction key QUICK/JOG key, can be used as multifunction key
Environment Ambient temperature -10℃～40℃, derated 4% when the temperature rise by every 1℃(40℃～50℃).
Humidity 90%RH or less (non-condensing)
Altitude ≤1000M: output rated power, ＞1000M: output  derated
Storage temperature -20℃～60℃
Storage environment Indoor, no direct sunlight, dust, corrosive gas, flammable gas, oil mist, steam, dripping water, salt, vibration

Selection Table of Inverter Micno ME3000 Series Engineering

ME3000 products, complete models, can provide 1AC 220V / 3AC 220V ~ 660V voltage level products. The product power level covers 0.4 ~ 630kW.

MICNO industrial AC speed drives adopt world-class vector control technology and they can be equipped with rich function expansion cards, flexible application, stable operation

Pesan Sekarang

Pesan sekarang untuk cepat memenuhi kebutuhan perusahaan anda. Kami jual Inverter Micno dan banyak  Inverter Lainnya. Untuk informasi lebih lanjut silahkan hubungi Sales Marketing kami.
