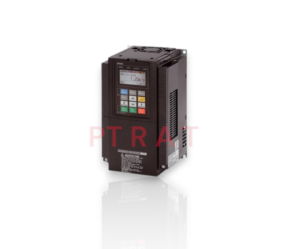

Inverter Omron 3G3LX Series Description
Experience & Comfort for lifts
Born out of Omron’s know-how and experience within the lift market, the LX can control gearless or geared systems. Designed for more than 5 million starts at 150% output current, the LX offers the high quality standards that you have come to expect, including noiseless operation and efficient motor control. The built-in clock & calendar and programming functionality offers flexibility in your application control.
Features:
- Power range from 3.7 to 37 kW
- Full lift sequence
- Patented high accuracy static tuning and rotary auto-tuning
- IM and PM motor control
- Static & rotary advanced auto tuning
- Torque ripple suppression
- Anti-rollback function
- Quick floor operation
- Rescue by UPS or battery
- Dual encoder option (Incremental, EnDat and Hiperface)
- Floor positioning auto-learning function of up to 40 floors
- Lift language (Hz, m/s, rpm…)
- Current vector control with or without PG
- High starting torque (200%/ 0.3 Hz sensorless vector – 200%/ 0 Hz closed loop vector control)
- Safety embedded: IEC 61508 SIL2 STO
- Clock and calendar function
- Silent motor & drive operation
- One parameter dynamic tuning
- Built-in logic programmability
- Positioning functionality with 40 floor memory & auto learning
- RS485 communication built-in –Modbus RTU–
- Dedicated lift functionality (brake control, lift sequence…)
- CE, cULus, RoHS
Models
- 3G3LX-A4037-E LX Inverter drive series for Lifts, 13.7W, 400vac, 9A
- 3G3LX-A4040-E LX Inverter drive series for Lifts, 4KW, 400vac, 11A
- 3G3LX-A4055-E LX Inverter drive series for Lifts, 5.5KW, 400vac, 14A
- 3G3LX-A4075-E LX Inverter drive series for Lifts, 7.5KW, 400vac, 19A
- 3G3LX-A4110-E LX Inverter drive series for Lifts, 11KW, 400vac, 27A
- 3G3LX-A4150-E LX Inverter drive series for Lifts, 15KW, 400vac, 34A
- 3G3LX-A4185-E LX Inverter drive series for Lifts, 18.5KW, 400vac, 41A
Standard LCD operator display
- Designed for easy editing and access to parameters
- Copy function: for parameter settings and programming backup
- 4 configurable multi-monitor parameters with real units
- Password protection
- 10 languages available as standard: English, German, French, Spanish, Italian, Portuguese, Japanese, Chinese, Turkish and Russian
- Real time clock and calendar can save fault history with date and hour
Multi encoder feedbackk
- Single or double channel encoder option boards for incremental, EnDAT and Hiperface encoder types
- Single and multiturn encoder
Motor flexibility and efficient control
- Geared induction motor control
- Gearless permanent magnet motor control
- Easy tuning and fast startup. Patented high accuracy static tuning and rotary auto-tuning
- 8 times faster control loop from previous solution, ensuring quick response against rollback
Silent and optimum operation
- No electric noise in the motor
- Fan is switched on/off depending on inverter temperature reducing audible noise
- The highest energy efficiency with PM motors
- Power supply can be cycled every 3 minutes for energy saving
Dedicated lift functionality
- Full lift sequence
- Sink and source control wiring to adapt to any lift controller
- Weight sensor compensation
- Special lift sequence errors
- Anti-rollback function
- Short floor lift travel: the Quick Floor Function reduces the time for short floor lengths
Inverter Omron 3G3LX Series Spesifications
