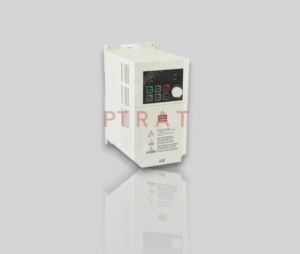

Jual Inverter Toshiba VF-S15

Inverter Toshiba VF-S15 Description

Broadly applicable.

The VF-S15 can control a wide range of variable and constant torque applications for multiple industries. It is capable of working with permanent magnet motors, which allows a much greater flexibility in selecting a motor for an application.

Easy to set up and operate.

The VF-S15 has auto-tuning function that allows for easy set up. You can also set up the parameters easily with the large set-up dial.

Energy saving, strong operation.

The VF-S15 achieved further energy savings through high efficiency control. The Vector control mode generates stable, high torque power from startup to rated frequency. In addition, it is able to continue operating during sudden and momentary power failures.

Ecology-oriented design.

The VF-S15 is able to continue operating for 10 years with the long-life capacitors.

Power Ratings

• Single phase 240 V at 0.2 to 2.2 kW
• Three phase 240 V at 0.2 to 15 kW
• Three phase 500 V at 0.4 to 15 kW

Frequency Range

• 0.1 to 500 Hz

Overload Rating

• 150% for 60 seconds

Degree of Protection

• IP20

Filter for Noise Reduction

• Single phase 240 V All models: Built-in EMC filter.
• Three phase 240 V All models: Built-in standard filter.
• Three phase 500 V All models: Built-in EMC filter.

*The EMC filter complies with the European EMC Directive.

Communications

• Standard: RS-485 (Modbus^®RTU / TOSHIBA) Two-Wire
• Optional: CC-Link^®, DeviceNet^TM,
  PROFIBUS^®-DP, EtherNet/IP^TM-Modbus^®TCP,
  EtherCAT^®, CANopen^®

Certifications

• CE, UL, CSA

Application Examples

• a wide range of applications
