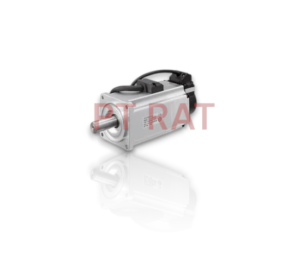

Servo Panasonic Minas MQMF011A1A2
Kami menjual Servo Panasonic Minas MQMF011A1A2 berkualitas Original dan dijamin keasliannya. Panasonic adalah merk dagang terkemuka yang telah dipakai hampir di semua pabrik yang ada di Indonesia. Kami siap memenuhi kebutuhan Servo & Drive Panasonic untuk Anda dengan cepat dengan harga bersaing di seluruh Indonesia.
High performance, multi-functional and compact AC Servo Motors from Panasonic. Panasonic Seri Servo Minas MQMF adalah Middle Intertia line up dari Servo Panasonic A6 Family dengan berbagai macam fitur.
Panasonic Minas MQMF011A1A2 Description
| Part Number | MQMF011A1A2 |
| Product | Servo Motor (Battery-less absolute encoder type) |
| Details | Middle inertia Flat type, Lead wire type |
| Product name | MINAS A6 Family Servo Motor |
| Features | 50 W to 22 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder, Frequency response 3.2 kHz |
Panasonic Minas MQMF011A1A2 Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MQMF011A1A2 |
| Details | Middle inertia Flat type, Lead wire type |
| Family Name | MINAS A6 |
| Series | MQMF Series |
| Type | Middle inertia |
| Protection class | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 60 mm sq. |
| Flange sq. dimension (Unit:mm) | 60 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.4 |
| Voltage specifications | 100 V |
| Rated output | 100 W |
| Rated current (A (rms)) | 1.6 |
| Holding brake | without |
| Mass (kg) | 0.54 |
| Oil seal | without |
| Shaft | Round |
| Rated torque (N ⋅ m) | 0.32 |
| Continuous stall torque (N ⋅ m) | 0.33 |
| Momentary Max. peak torque (N ⋅ m) | 1.11 |
| Max. current (A (o-p)) | 7.9 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4280 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 6500 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.15 |
| Recommended moment of inertia ratio of the load and the rotor | 20 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | Battery-less 23-bit Absolute/Incremental system |
| Notice | Do not connect the battery as it uses a batteryless absolute encoder. |
| Rotary encoder: Resolution | 8388608 |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 147 |
| During assembly: Thrust load A-direction (N) | 88 |
| During assembly: Thrust load B-direction (N) | 117.6 |
| During operation: Radial load P-direction (N) | 68.6 |
| During operation: Thrust load A, B-direction (N) | 58.8 |
| About permissible load | For details, refer to the [Motor Specification Description] \”Permissible Load at Output Shaft\”. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 147 |
| During assembly: Thrust load A-direction (N) | 88 |
| During assembly: Thrust load B-direction (N) | 117.6 |
| During operation: Radial load P-direction (N) | 68.6 |
| During operation: Thrust load A, B-direction (N) | 58.8 |
| About permissible load | For details, refer to the [Motor Specification Description] \”Permissible Load at Output Shaft\”. |
Panasonic Minas A6 MQMF Part Number
| MDMF102L1C5 | MDMF202L1H6M | MDMF502L1C5 |
| MDMF102L1C6 | MDMF202L1H7 | MDMF502L1C6 |
| MDMF102L1C6M | MDMF202L1H8 | MDMF502L1C6M |
| MDMF102L1C7 | MDMF202L1H8M | MDMF502L1C7 |
| MDMF102L1C8 | MDMF204A1C9M | MDMF502L1C8 |
| MDMF102L1C8M | MDMF204A1CAM | MDMF502L1C8M |
| MDMF102L1D5 | MDMF204A1D9M | MDMF502L1D5 |
| MDMF102L1D6 | MDMF204A1DAM | MDMF502L1D6 |
| MDMF102L1D6M | MDMF204A1G9M | MDMF502L1D6M |
| MDMF102L1D7 | MDMF204A1GAM | MDMF502L1D7 |
| MDMF102L1D8 | MDMF204A1H9M | MDMF502L1D8 |
| MDMF102L1D8M | MDMF204A1HAM | MDMF502L1D8M |
| MDMF102L1G5 | MDMF204L1C9M | MDMF502L1G5 |
| MDMF102L1G6 | MDMF204L1CAM | MDMF502L1G6 |
| MDMF102L1G6M | MDMF204L1D9M | MDMF502L1G6M |
| MDMF102L1G7 | MDMF204L1DAM | MDMF502L1G7 |
| MDMF102L1G8 | MDMF204L1G9M | MDMF502L1G8 |
| MDMF102L1G8M | MDMF204L1GAM | MDMF502L1G8M |
| MDMF102L1H5 | MDMF204L1H9M | MDMF502L1H5 |
| MDMF102L1H6 | MDMF204L1HAM | MDMF502L1H6 |
| MDMF102L1H6M | MDMF302L1C5 | MDMF502L1H6M |
| MDMF102L1H7 | MDMF302L1C6 | MDMF502L1H7 |
| MDMF102L1H8 | MDMF302L1C6M | MDMF502L1H8 |
| MDMF102L1H8M | MDMF302L1C7 | MDMF502L1H8M |
| MDMF104A1C9M | MDMF302L1C8 | MDMF504A1C9M |
| MDMF104A1CAM | MDMF302L1C8M | MDMF504A1CAM |
| MDMF104A1D9M | MDMF302L1D5 | MDMF504A1D9M |
| MDMF104A1DAM | MDMF302L1D6 | MDMF504A1DAM |
| MDMF104A1G9M | MDMF302L1D6M | MDMF504A1G9M |
| MDMF104A1GAM | MDMF302L1D7 | MDMF504A1GAM |
| MDMF104A1H9M | MDMF302L1D8 | MDMF504A1H9M |
| MDMF104A1HAM | MDMF302L1D8M | MDMF504A1HAM |
| MDMF104L1C9M | MDMF302L1G5 | MDMF504L1C9M |
| MDMF104L1CAM | MDMF302L1G6 | MDMF504L1CAM |
| MDMF104L1D9M | MDMF302L1G6M | MDMF504L1D9M |
| MDMF104L1DAM | MDMF302L1G7 | MDMF504L1DAM |
| MDMF104L1G9M | MDMF302L1G8 | MDMF504L1G9M |
| MDMF104L1GAM | MDMF302L1G8M | MDMF504L1GAM |
| MDMF104L1H9M | MDMF302L1H5 | MDMF504L1H9M |
| MDMF104L1HAM | MDMF302L1H6 | MDMF504L1HAM |
| MDMF152L1C5 | MDMF302L1H6M | MDMF752L1C5 |
| MDMF152L1C6 | MDMF302L1H7 | MDMF752L1C6 |
| MDMF152L1C6M | MDMF302L1H8 | MDMF752L1C6M |
| MDMF152L1C7 | MDMF302L1H8M | MDMF752L1D5 |
| MDMF152L1C8 | MDMF304A1C9M | MDMF752L1D6 |
| MDMF152L1C8M | MDMF304A1CAM | MDMF752L1D6M |
| MDMF152L1D5 | MDMF304A1D9M | MDMF752L1G5 |
| MDMF152L1D6 | MDMF304A1DAM | MDMF752L1G6 |
| MDMF152L1D6M | MDMF304A1G9M | MDMF752L1G6M |
| MDMF152L1D7 | MDMF304A1GAM | MDMF752L1H5 |
| MDMF152L1D8 | MDMF304A1H9M | MDMF752L1H6 |
| MDMF152L1D8M | MDMF304A1HAM | MDMF752L1H6M |
| MDMF152L1G5 | MDMF304L1C9M | MDMFC12L1C5 |
| MDMF152L1G6 | MDMF304L1CAM | MDMFC12L1C6 |
| MDMF152L1G6M | MDMF304L1D9M | MDMFC12L1D5 |
| MDMF152L1G7 | MDMF304L1DAM | MDMFC12L1D6 |
| MDMF152L1G8 | MDMF304L1G9M | MDMFC12L1G5 |
| MDMF152L1G8M | MDMF304L1GAM | MDMFC12L1G6 |
| MDMF152L1H5 | MDMF304L1H9M | MDMFC12L1H5 |
| MDMF152L1H6 | MDMF304L1HAM | MDMFC12L1H6 |
| MDMF152L1H6M | MDMF402L1C5 | MDMFC52L1C5 |
| MDMF152L1H7 | MDMF402L1C6 | MDMFC52L1C6 |
| MDMF152L1H8 | MDMF402L1C6M | MDMFC52L1D5 |
| MDMF152L1H8M | MDMF402L1C7 | MDMFC52L1D6 |
| MDMF154A1C9M | MDMF402L1C8 | MDMFC52L1G5 |
| MDMF154A1CAM | MDMF402L1C8M | MDMFC52L1G6 |
| MDMF154A1D9M | MDMF402L1D5 | MDMFC52L1H5 |
| MDMF154A1DAM | MDMF402L1D6 | MDMFC52L1H6 |
| MDMF154A1G9M | MDMF402L1D6M | MDMFD22L1C5 |
| MDMF154A1GAM | MDMF402L1D7 | MDMFD22L1C6 |
| MDMF154A1H9M | MDMF402L1D8 | MDMFD22L1D5 |
| MDMF154A1HAM | MDMF402L1D8M | MDMFD22L1D6 |
| MDMF154L1C9M | MDMF402L1G5 | MDMFD22L1G5 |
| MDMF154L1CAM | MDMF402L1G6 | MDMFD22L1G6 |
| MDMF154L1D9M | MDMF402L1G6M | MDMFD22L1H5 |
| MDMF154L1DAM | MDMF402L1G7 | MDMFD22L1H6 |
| MDMF154L1G9M | MDMF402L1G8 | |
| MDMF154L1GAM | MDMF402L1G8M | |
| MDMF154L1H9M | MDMF402L1H5 | |
| MDMF154L1HAM | MDMF402L1H6 | |
| MDMF202L1C5 | MDMF402L1H6M | |
| MDMF202L1C6 | MDMF402L1H7 | |
| MDMF202L1C6M | MDMF402L1H8 | |
| MDMF202L1C7 | MDMF402L1H8M | |
| MDMF202L1C8 | MDMF404A1C9M | |
| MDMF202L1C8M | MDMF404A1CAM | |
| MDMF202L1D5 | MDMF404A1D9M | |
| MDMF202L1D6 | MDMF404A1DAM | |
| MDMF202L1D6M | MDMF404A1G9M | |
| MDMF202L1D7 | MDMF404A1GAM | |
| MDMF202L1D8 | MDMF404A1H9M | |
| MDMF202L1D8M | MDMF404A1HAM | |
| MDMF202L1G5 | MDMF404L1C9M | |
| MDMF202L1G6 | MDMF404L1CAM | |
| MDMF202L1G6M | MDMF404L1D9M | |
| MDMF202L1G7 | MDMF404L1DAM | |
| MDMF202L1G8 | MDMF404L1G9M | |
| MDMF202L1G8M | MDMF404L1GAM | |
| MDMF202L1H5 | MDMF404L1H9M | |
| MDMF202L1H6 | MDMF404L1HAM |
Tipe Panasonic Servo Minas A6 Series :
Low Intertia
Middle Intertia
High Intertia
Panasonic AC SERVOS & MOTORS
Pesan sekarang untuk cepat memenuhi kebutuhan Servo & Drive panasonic di perusahaan anda. Kami Distributor Servo & Drive Panasonic dan banyak Servo & Drive Lainnya. Untuk informasi lebih lanjut silahkan hubungi Sales Marketing kami.
