Kami menjual Produk YOKOGAWA General Purpose Temperature Controller UT75A Yang Berkualitas Original Dengan harga yang bersaing Kebutuhan anda Kami Solusinya

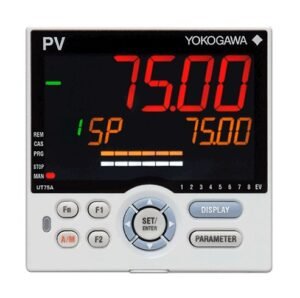

The UT75A temperature controllers employ an easy-to-read, 14-segment large color LCD display, along with navigation keys, thus greatly increasing the monitoring and operating capabilities. A ladder sequence function is included as standard. The short depth of the controller helps save instrument panel space. The UT75A also support open networks such as Ethernet communication.
UT75A Temperature Controller Features
- Comes with a 2-loop control function
- Ladder sequence capacity up to 1,000 steps
- Includes custom ladder function
- Offers 20 sets of target setpoints
- Supports open networks (CC-Link, PROFIBUS-DP, DeviceNet)
Specifications YOKOGAWA UT75A
| ITEM | UT75A | |
|---|---|---|
| PV input | Input type | Universal input (TC, RTD, mV, V, mA) |
| Number | 1(Std) 2(Max) | |
| Indication accuracy | ±0.1% of F.S. | |
| Number of Control loops | 1(Std) 2(Max) | |
| Control scan period | 50, 100, 200 msec | |
| PV/SP data display | 14-segment, 5 digits, Bar graph LCD display | |
| Control outputs (MV) | Type | Relay, Voltage Pulse, Current |
| Algorithm | ON/OFF, PID (Continuous, Time-proportional), Heating/Cooling, Position-proportional | |
| Digital inputs | Number | 3(Std) 8(Max) |
| Type | SP No.Change, PID No. Change, A/M Change, etc | |
| Digital outputs | Number | 3(Std) 8(Max) |
| Function | PV High, PV Low, Dev High, etc | |
| Number of Program pattern | Number | 1 |
| Number of program segment | Number | 20(Max) |
| Retransmission | Number | 1 |
| Type | PV, SP, OUT, etc | |
| Remote (aux.) input (option) | Number | 1 or 2 |
| Type | 1 to 5 V, etc | |
| Communication (option) | Number | 1 or 2 |
| Type | RS-485, Ethernet, PROFIBUS-DP, CC-Link, DeviceNet | |
| Other specifications | Power supply | 100 to 240 VAC (+10%, -15%) or 24 VAC/DC (+10%, -15%) (option) |
| Power consumption | Max 18 VA | |
| Mass | Max 0.5 kg |
Pesan sekarang untuk cepat memenuhi kebutuhan Sensor YOKOGAWA di perusahaan anda. Kami Distributor Sensor & Controler YOKOGAWA dan banyak Sensor & Controler Lainnya. Untuk informasi lebih lanjut silahkan hubungi Sales Marketing kami.
