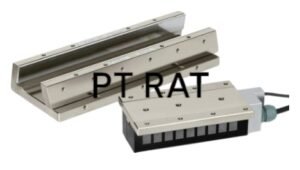

Yaskawa SGLT Linear Sigma-V

Kami menjual Yaskawa SGLT Linear Sigma-V berkualitas Original dan dijamin keasliannya. Yaskawa adalah merk dagang terkemuka yang telah dipakai hampir di semua pabrik yang ada di Indonesia. Kami siap memenuhi kebutuhan Servo & Drive Yaskawa untuk Anda dengan cepat dengan harga bersaing di seluruh Indonesia.

Balanced Iron-core coil and magnet track components

Iron core TW linear motors are composed of moving coils with a laminated iron-core and a pair of stationary magnet tracks that are placed on each side of the moving coils. The moving coil of the TW linear motor is composed of laminated iron core and prewound coil bobbins inserted into the slots located on the laminated iron cores. The entire coil unit is permanently encapsulated in a thermally conductive resin body to give structural rigidity. The magnet track of the TW is made of a row of rare earth magnets accurately placed on one side of the nickelized steel carrier plate. Two of the magnet carrier plates are used as a pair in a fashion similar to that of the coreless type linear motor. Stainless steel magnet covers guard against minor accidental damage to the magnets.

Yaskawa SGLT Linear Sigma-V Features Highlights

Unique construction principles negate the effects of magnetic attraction force between the relative motor members (balanced design). This provides for the use of smaller linear bearings without major concerns in the linear motion bearing life.
High winding space factor by concentrated windings (Factor approx. 70%)
Bearings will run quieter due to the lack of attraction force
Very little cogging due to its optimized internal magnetic circuit design

Specifications

Specification	Description
Duty Rating	Continuous
Insulation Resistance:	500VDC, 10MΩ minimum
Motor Type:	Sinusoidally commutated permanent magnet brushless linear motor
Ambient Temperature:	0 to 40ºC
Ambient Humidity	20 to 80% (non-condensing)
Cooling Method	Self/forced air
Allowable Winding Temperature	130ºC (Class B)
Insulation Dielectric Voltage	1500V_AC 1 min

Yaskawa SGLT Linear Sigma-V Models & Ratings

Specification	Linear Servomotor Model Number
SGLTW-20A¹	SGLTW-35A¹	SGLTW-40A²	SGLTW-80A²
170A	320A	460A	170A	320A	460A	400A	600A	400A	600A
Continuous Output	W	325	625	950	550	1100	1675	1675	2500	2600	4000
Continuous Force	N	130	250	380	220	440	670	670	1000	1300	2000
Continuous Current	A_RMS	2.3	4.4	6.7	3.5	7	10.7	10.8	16.1	19.3	29.7
Peak Force	N	380	760	1140	660	1320	2000	2000	3000	4000	6000
Peak Current	A_RMS	7.7	15.4	23.2	12.1	24.2	36.7	37.0	55.5	67.8	101.8
Moving Coil Mass	kg	2.6	4.6	6.7	3.7	6.8	10.0	20.0	30.0	30.0	43.0
Force Constant	N/A_RMS	61.0	61.0	61.0	67.5	67.5	67.5	66.9	66.9	72.6	72.6
BEMF Constant	V/(m/s)	20.3	20.3	20.3	22.5	22.5	22.5	22.3	22.3	24.2	24.2
Motor Constant	N/√W	18.7	26.5	32.3	26.7	37.5	46.4	64.1	76.6	89.7	105.4
Electrical Time Constant	ms	5.9	5.9	5.9	6.9	6.8	7.0	17.8	16.5	19.3	16.6
Mechanical Time Constant	ms	7.5	6.5	6.4	5.2	4.8	4.6	4.9	5.1	3.7	3.9
Thermal Resistance (with Heatsink)	K/W	1.01	0.49	0.38	0.76	0.44	0.32	0.34	0.23	0.28	0.19
Thermal Resistance (without Heatsink)	K/W	1.82	1.11	0.74	1.26	0.95	0.61	0.60	0.47	0.55	0.36
Magnetic Attraction Force	N	0	0	0	0	0	0	0	0	0	0

Note: Values when the linear motor is combined with the SGDH Sigma II amplifier.
¹These values are with aluminum heatsink (170A: 254x254x25mm, 320A/460A : 400x500x40mm) mounted to the motor coil.
²These values are with aluminum heatsink (609x762x50mm) mounted to the motor coil.
