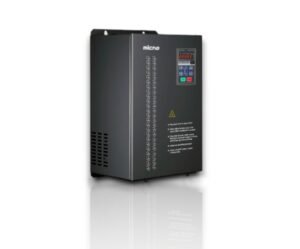

Inverter Micno KE300A-11

Inverter Micno KE300A-11 Series High Power And High Protection

Kami Jual Inverter Micno KE300A-11 Series High Power And High Protection berkualitas Original dan dijamin keasliannya. Micno adalah merk dagang terkemuka yang telah dipakai hampir di semua pabrik yang ada di Indonesia. Kami siap memenuhi kebutuhan inverter Micno untuk Anda dengan cepat dengan harga bersaing di seluruh Indonesia.

Description of Inverter Micno KE300A-11 Series High Power And High Protection

According to the application characteristics of 710-1200KW high-power motors, a special product developed which is using parallel dynamic current sharing technology of IGBT modules. The unique heat dissipation design fully meets the heat dissipation problem of high-power frequency conversion, and guarantees cost performance at the same time.

Specifications of Inverter Micno KE300A-11 Series High Power And High Protection

ItemTechnical IndexSpecification
InputInput voltage1AC 220V±15%,3AC 380V±15%
Input frequency47~63Hz
OutputOutput voltage0～rated input voltage
Output frequencyV/f control: 0~3000Hz Sensorless vector control: 0~300Hz
Operation command modeKeypad control Terminal control Serial communication control
Frequency setting modeDigital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes.
Overload capacityG model: 150% 60s, 180% 10s, 200% 3s P model: 120% 60s, 150% 10s, 180% 3s
Starting torque0.5Hz/150% (SVC); 1Hz/150% (V/f)
Speed adjustment range1:100 (SVC), 1:50 (V/f)
Carrier frequency1.0-16.0kHz，automatically adjusted according to temperature and load characteristics
Frequency accuracyDigital setting: 0.01HzAnalog setting: maximum frequency * 0.05%
Torque boostAutomatically torque boost; manually torque boost: 0.1%~30.0%
V/f curveThree types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
Acceleration/decele ration modeStraight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s~3600.0s
DC brakingDC braking when starting and stopping DC braking frequency: 0.0Hz~maximum frequency, braking time: 0.0s~100.0s
Jog operationJog operation frequency: 0.0Hz~maximum frequency Jog acceleration/deceleration time: 0.1s~3600.0s
Simple PLC & multi-step speed operationIt can realize a maximum of 16 segments speed running via the built-in PLC or control terminal.
Built-in PIDBuilt-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
Automatic voltage regulationKeep output voltage constant automatically when input voltage fluctuating
Control FunctionCommon DC busCommon DC bus for several inverters, energy balanced automatically
Torque controlTorque control without PG
Torque limit“Rooter” characteristics, limit the torque automatically and prevent frequent over-current tripping during the running process
Wobble frequency controlMultiple triangular-wave frequency control, special for textile
Timing/length/counting controlTiming/length/counting control function
Over-voltage & over-current stall controlLimit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
Fault protection functionUp to 30 fault protections including over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running status during failure & has fault automatic reset function
Input/output terminalsInput terminalsProgrammable DI: 7 on-off inputs, 1 high-speed pulse input 2 programmable AI: AI1: 0～10V or 0/4～20mA                               A12: 0～10V or 0/4～20mA
Output terminals1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output) 2 relay output 2 analog output: 0/4~20mA or 0~10V
Communication terminalsOffer RS485 communication interface, support MODBUS-RTU communication protocol
Human machine interfaceLED displayDisplay frequency setting, output frequency, output voltage, output current, etc.
Multifunction keyQUICK/JOG key, can be used as multifunction key
EnvironmentAmbient temperature-10℃～40℃, derated 4% when the temperature rise by every 1℃(40℃～50℃).
Humidity90%RH or less (non-condensing)
Altitude≤1000M: output rated power, ＞1000M: output  derated
Storage temperature-20℃～60℃
Storage environmentIndoor, no direct sunlight, dust, corrosive gas, flammable gas, oil mist, steam, dripping water, salt, vibration

Selection Table Micno KE300A-10 Double frequency Conversion Wire Drawing Machine Special Inverter

ModelMotorRated Input Amperage（A）Rated output Amperage（A）
kWHP
3AC 380V Input/ Output
KE300A-11-710G-T471095012901250
KE300A-11-800G-T4800107014501400
KE300A-11-900G-T4900120016301580
KE300A-11-1000G-T41000133018001750
KE300A-11-1200G-T41200160021602100
KE300A-11-1400G-T41400186024202350
3AC 660V Input/ Output
KE300A-11-710G-T6710950800770
KE300A-11-800G-T68001070900865
KE300A-11-900G-T690012001000970
KE300A-11-1000G-T61000133011201080
KE300A-11-1200G-T61200160012901280
KE300A-11-1400G-T61400186015101460
KE300A-11-1600G-T61600213017801720

MICNO industrial AC speed drives adopt world-class vector control technology and they can be equipped with rich function expansion cards, flexible application, stable operation
